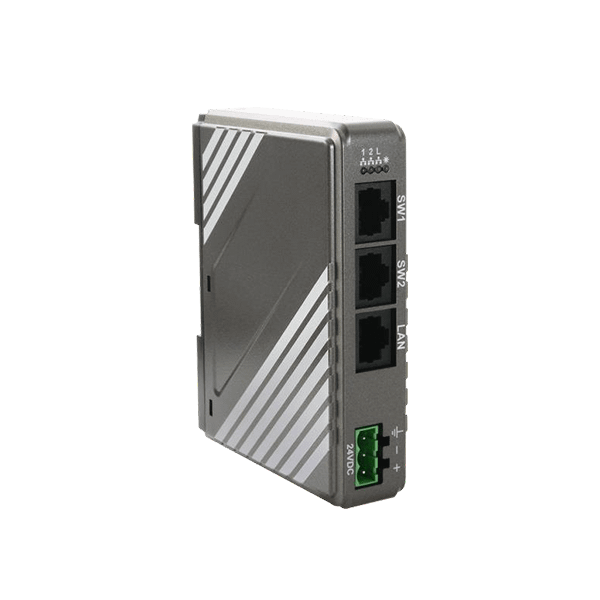

With built-in Ethernet switch, SW1 and SW2 can connect to machine network without the need for adding an Ethernet switch, which can save wiring cost. The LAN port connects to company/factory network.
Supports OPC UA and MQTT
Supports MODBUS TCP/IP Gateway
Compact Design and DIN-rail Mountable
Fan-less Cooling System
Built-in 256 MB Flash Memory
Built-in Power Isolator
Wide input voltage range: 10.5~28VDC
Specifications
Note: Weight and Dimensions may refer to shipping weight and dimensions.
Weight
1 lbs
Dimensions
4.3 × 3.2 × 1.1 in
Screen Size
N/A
Resolution
N/A
Rating
IP20
CPU - RAM/Flash
528 MHZ – 256M / 256M
Voltage
10.5 – 28 VDC
Ethernet Port
1
Easy Access 2.0
Optional
UL Listing
Yes
Codesys
No
Manufacturer
Weintek
